Szafir System
aluminum system with the profile expressing the harmonious geometry of forms
Profiles designed
for the insert with the thickness:
- 4 mm
- 4,6 mm
- 6 mm
- 8 mm
- 10 mm
Materials for the facade
can be:
- panels from natural wood
- chipboards
- MDF boards
- plastic
- safe glass of different types (transparent, opaque, lacquered)
- mirrors
Szafir system
enables to produce
- sliding doors
- interior partitions
Standard profile length – 2750 mm
Width – 20 mm
One of the few systems enabling production of doors with the maximum width 1500 mm for all the types of filling.
Minimum doors width – 400 mm
Whatever insert for the wardrobe facade you choose (board, mirror, glass) - the doors of the furniture will be strong, stable and easy to move
Szafir system is available
in 5 colors:
Natural Anode (AN)
Anode Champagne (AS)
Gold (ZB)
Anode Graphite (AG)
White (BI)
Rollers designed according to the innovative technology became the unique peculiarity of all the Komandor systems
Casters made of soft plastic on the top rollers ensure quiet work of the mechanism
The bottom rollers are made of wear-resistant
plastic and have bearings
The system «anti-jumping» keeps
the door from falling out of the track
An additional advantage of sliding mechanisms is the ability to adjust the door height
Rollers in Szafir system are hidden from both sides, so you can use a transparent glass as the doors insert, what is very actual for interior partitions
This solution is suitable as for small rooms because it visually enhances the area, so for the spacious rooms in country houses, cottages, offices
Rollers are called the moving mechanisms which are fundamental elements of any wardrobe-compartment construction
Mostly of the rollers quality depends reliability and durability of the product
Tracks in the system
can be of 2 types:
single
double
If necessary, the bottom track
can be embed in the floor
or inserted in the floor covering
(carpet)

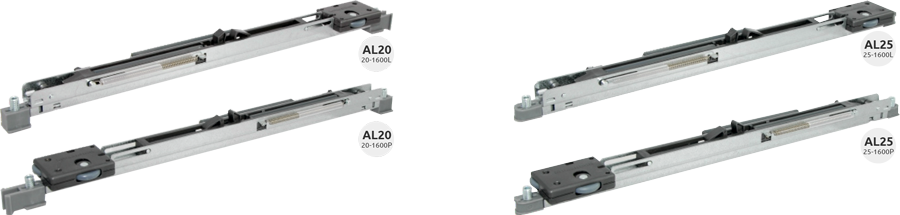

It is possible to install Comfort Touch springswhich easily slow down the doorsand carefully close it
There is the possibility to fix buffer brush of various length on vertical profile for protection of the walls or side panels
The buffer brush is used for preventing dust inside the cabinet
Protects doors from vibrations and from each other during the movement
For uniting of the different types of insert in one door the connection profile is used
For wardrobe facade decoration decorative batten is often used for imitation of the doors separation into smaller segments
Decorative batten is attached to a homogeneous
insert (plane, glass, mirror)
vertically, horizontally
or at an angle
Szafir system includes the installation of lock-blockfor the aluminum doors
1) Lock for door interlock with rosette;
2) Door vertical lock;
3) Sliding door lock;
4) Electronic lock
It will be useful to mount the locks in the wardrobes-compartments
for the safe storage of the documents and valuables
and in order to protect your children and keep them from injuring by the doors
Szafir system will organically fit
any interior, as of private dwelling (apartment, house),
so of the various offices, hotels, restaurants,
shops and other facilities where there is a need
to mount the wardrobe-compartment
or interior partition
Narrow and yet stable form, metal profile shades, clarity of lines and the ability to produce wide doors make Szafir system so desirable in the process of furnishing reproduction of the contemporary, non-standard modernist designs
The peculiarities of Szafir system are dynamics and laconic in every movement, accent only on the form and construction solidity. These features will help to make your interior unique, original and different from others
