Easy viewing!
Esc - presentation map
View control panel
Corner
system
perfect solution if you want to save space and interior decoration. The system guarantees the unique look of the product and the optimal use of the apartment space
Possible variants for apartments installation:
corner internal connection (standard profile length – 2750 mm, width – 44 mm)
corner external connection (standard profile length – 2750 mm, width – 41 mm)

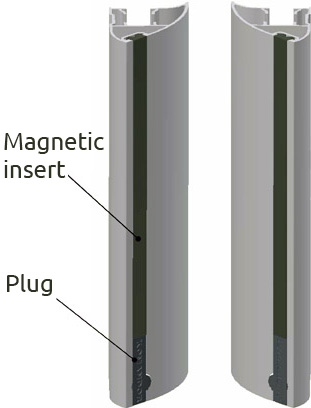

In a corner system vertical profiles Lazuryt are used, which at the same time serve as a convenient handle for the doors opening.
Doors in the corner system are easily closed due to the magnetic stripe inserted in the profile
Corner system enables producing of the:
- sliding doors
- hanging doors
Sliding doors
Profiles designed for
the filling with the width of:
- 4 mm
- 4.6 mm
- 5 mm
- 6 mm
- 10 mm
Profiles designed for
the filling with the width of:
- 4 mm
- 4.6 mm
- 5 mm
- 6 mm
- 10 mm
Maximum width of the sliding doors
with the board insert is 1200 mm,
glass/mirror – 1000 mm
Taking into consideration the proper loading and optimal cost we do recommend to install the doors with the width of 700-800 mm
Corner system with the sliding
doors is available
in 3 colors:
- (AN) Anode Natural
- (AS) Anode Champaigne
- (AA) Anode Antique
A unique feature of all Komandor
systems are developed
using innovative technology rollers
Bottom roller
Top roller
Casters made of soft plastic on the top rollers ensure quiet operation of the mechanism
The bottom rollers are made
of wear-resistant plastic
and have bearings
«Anti-jumping» system prevents
the door from falling out of the track
Rollers in the corner system are hidden from both sides so it allows to use transparent glass as a door filling
The buffer brush is used for preventing dust inside the cabinet and for the doors ends protection from hitting during the movement
There are 2 types of rails
in the system:
single
double

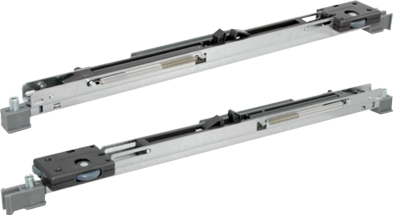

It is possible to install Comfort Touch springswhich easily slow down the doorsand carefully close it
Corner sliding system allows to use on the facade of the wardrobe-compartment
or partition connection profile for the combination
of different types of insert in one door.
The system has the ability to reproduce unusual shapes on the doors
using the bent connecting profile
An interesting modification of corner joints is aluminum AL27 system for the hanging doors that allows to mount the door at an angle without the bottom track.
Its main feature is that the door is sliding along the top rail and the floor remains intact
Hanging doors
Profiles designed for
the filling with the width:
- 4 mm
- 4.6 mm
- 10 mm
Profiles designed for
the filling with the width:
- 4 mm
- 4.6 mm
- 10 mm
It should be mentioned that maximum doors weight must be up to 50 kg
Width of the hanging doors should be from 600 mm up to 1500 mm.
Hanging corner system is available in the color Anode Natural (AN).
The rails in hanging system are single
Materials for the facade
in the corner system can be:
- panels from the natural wood
- chipboards, MDF boards
- plastic
- safe glass of different types (transparent, opaque, varnished, etc.)
- mirrors
- panels from the natural wood
- chipboards, MDF boards
- plastic
- safe glass of different types (transparent, opaque, varnished, etc.)
- mirrors
For the adornment of wardrobe facade the decorative batten is often used, also it serves for imitation of door separation into smaller segments. Decorative batten is attached to a homogeneous insert (board, glass, mirror) vertically, horizontally or at an angle
There is absent the structural column in this system in the middle of the corner construction and as a result we have the full access to the wardrobe content
With the help of the corner system you can furnish not only a wardrobe-compartment or entrance to the dressing room, but also you can separate the adjacent rooms (such as living room and bedroom, kitchen and dining room) because of the function of apartment re-planing
A variety of profiles for angle joints and broad field of implementation make corner system the universal solution for several tasks simultaneously: it helps to use the space as much as possible, the construction looks aesthetically pleasant and its functionality is enormous
System is the perfect complement to the modern styles of design, which are characterized by rational planning, lack of archaic forms and bright implementation of your individuality
